FROM CONCEPT TO PART
PRECISION MACHINING WITHOUT THE PRODUCTION VOLUME.

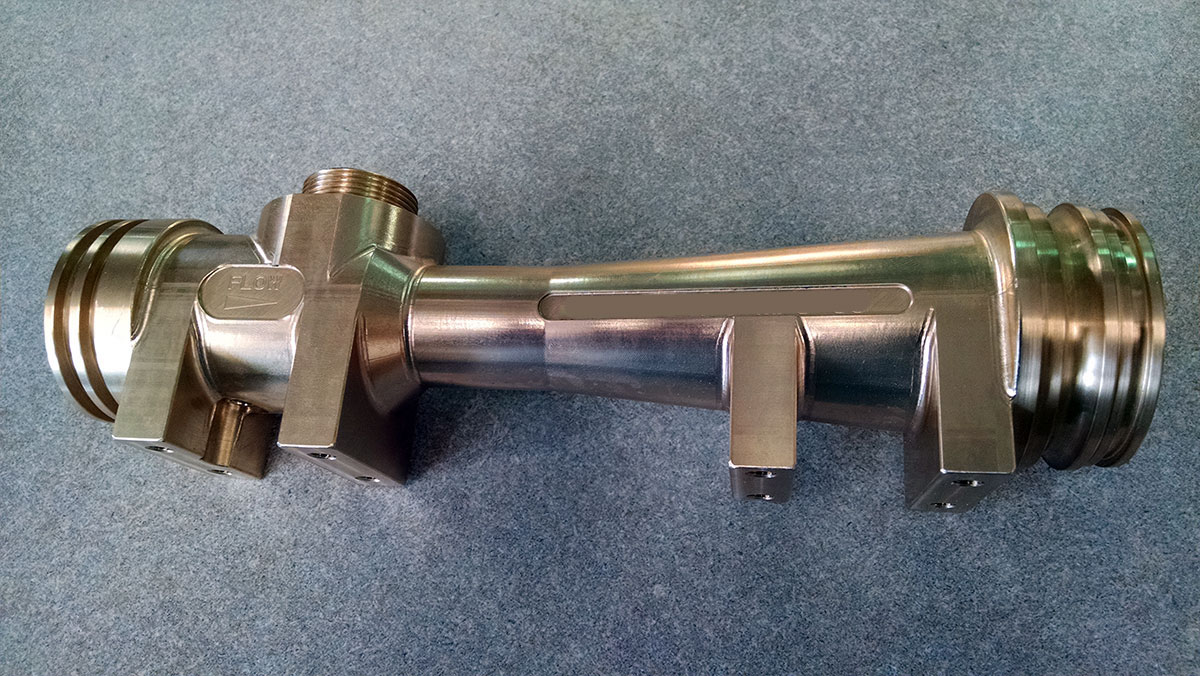

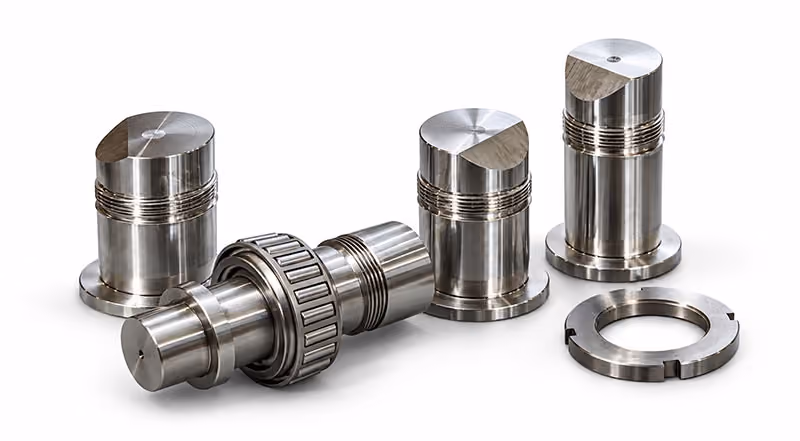

Not every machined component requires a full production run. XL Pattern Shop provides prototype and low-volume CNC machining for customers who need accurate parts for product development, testing, validation, or specialized applications.
Our in-house engineering and machining capabilities allow us to work from customer-supplied CAD data, drawings, or existing components. From a single prototype to short-run production, we focus on accuracy, repeatability, and getting complex parts into your hands efficiently.
HAVE A PART OR CONCEPT?
Yeah, We Can Do That!
Send us your CAD file, drawing, or project requirements and our team can help determine the right machining approach.
NATIONAL REACH
Prototype machining support for manufacturers across the U.S. and beyond.
Experienced Team
Decades of precision machining and manufacturing experience.
Built For Production
From one-off prototypes to repeatable low-volume production.
MACHINING CAPABILITIES
BUILT TO TAKE YOUR PART FROM CONCEPT TO REALITY.
XL Pattern Shop combines CNC machining, turning, fabrication, and supporting processes to produce prototype and short-run components from billet stock, castings, and existing designs.

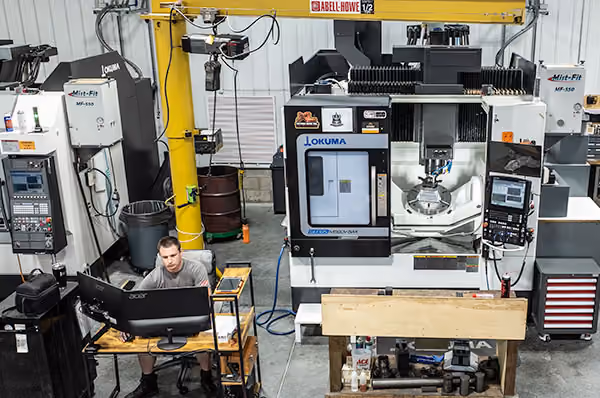

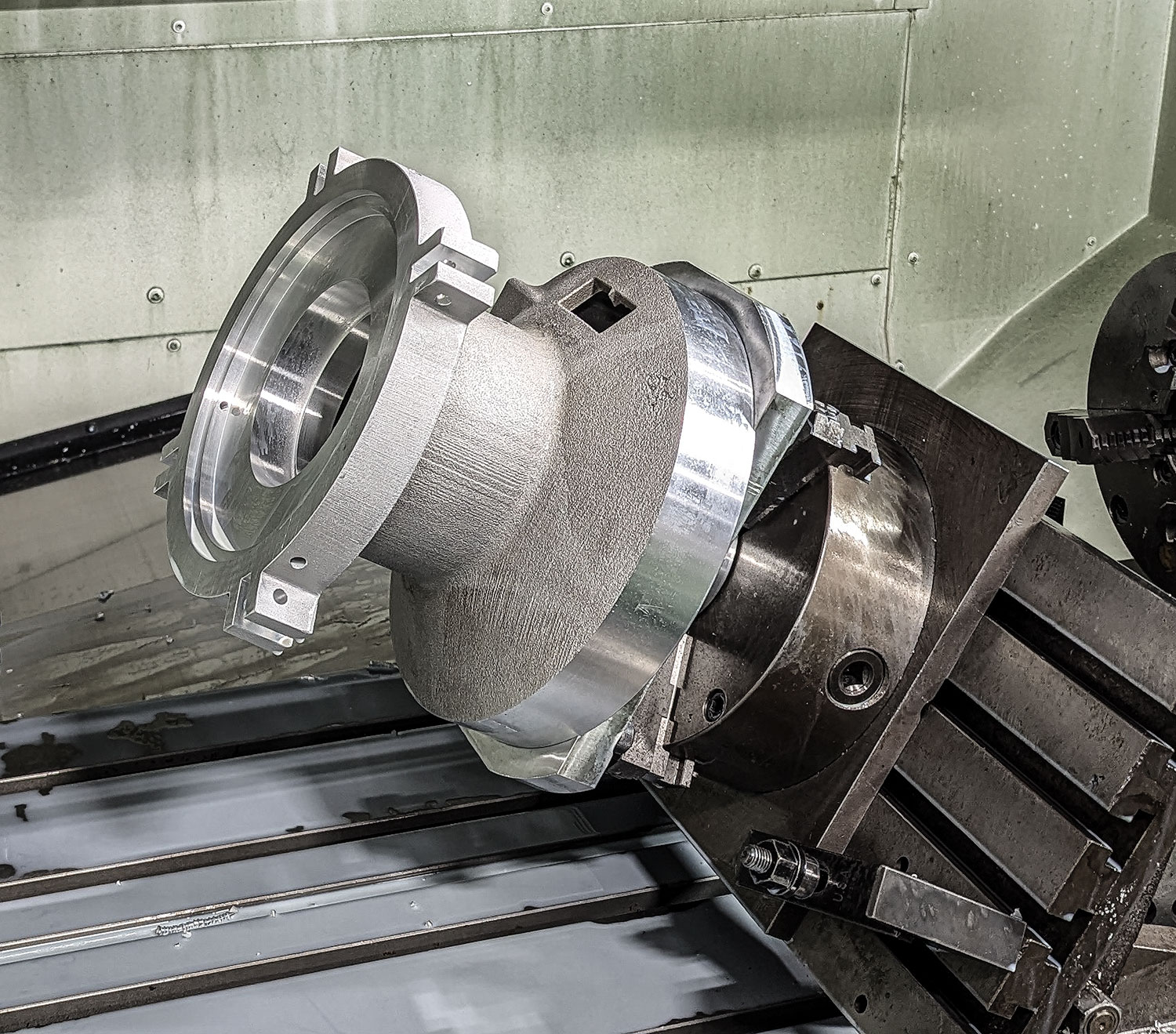

4 & 5 AXIS CNC MACHINING
Advanced multi-axis machining for complex prototype parts, intricate geometries, and precision components requiring fewer setups.

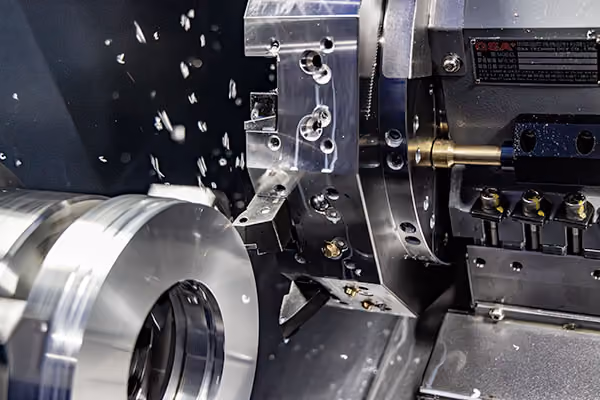

CNC TURNING
In-house CNC lathe capabilities for shafts, cylindrical components, and other precision-turned parts.

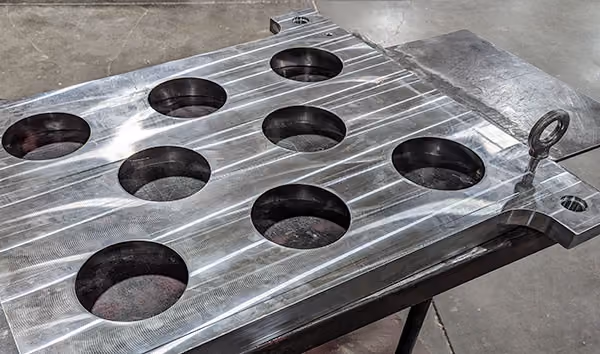

BILLET & CASTING MACHINING
Prototype and short-run machining from billet stock or castings, tailored to the requirements of each part.

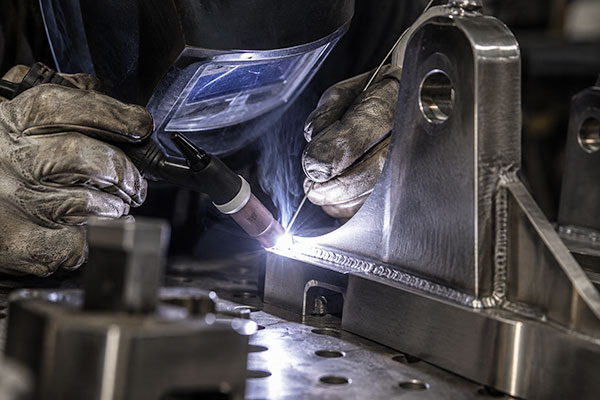

FABRICATION & CUTTING
In-house welding with access to advanced waterjet and laser cutting capabilities for complete part solutions.
FLEXIBLE PRODUCTION
ONE PART OR A SHORT RUN.
From one-off prototypes to low-volume production, XL Pattern Shop provides flexible CNC machining without the requirements of a full production run.
FROM PROTOTYPE TO PRODUCTION
BUILT TO MOVE YOUR PROJECT FORWARD.
Prototype machining is often just one step in the development process. XL Pattern Shop can work from your CAD data, drawings, or existing components to produce accurate parts for testing, validation, fit checks, and real-world evaluation.
When the design is ready, our machining capabilities also allow us to support short-run production without forcing your project into a high-volume manufacturing process.

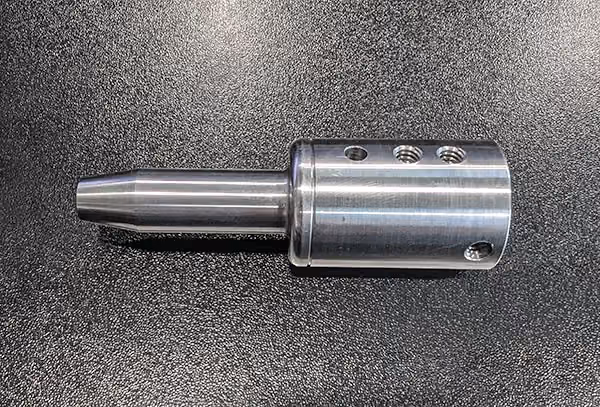

SINGLE PROTOTYPES
Precision-machined components for design validation, testing, fit checks, and functional evaluation.

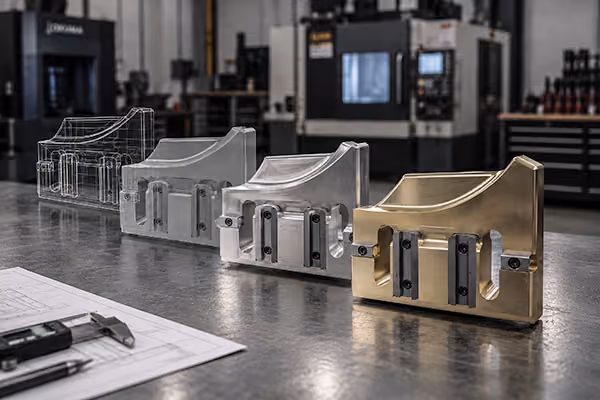

DESIGN ITERATIONS
Make changes, refine geometry, and machine updated components as your design evolves.

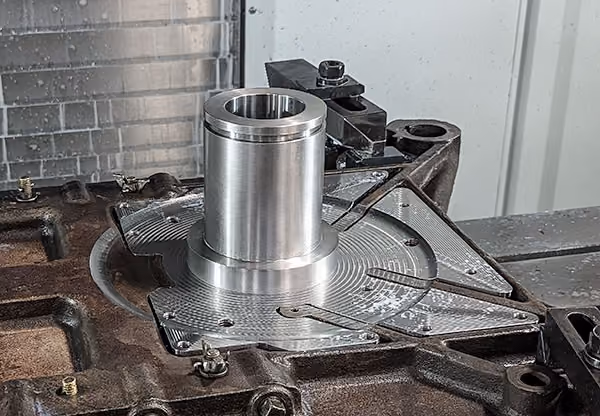

SHORT-RUN PRODUCTION
Move from a proven prototype into low-volume production with the same machining team and capabilities.
